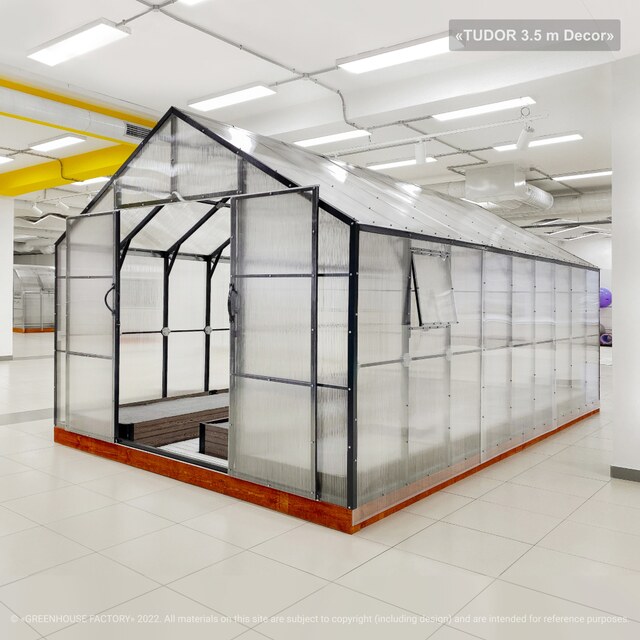

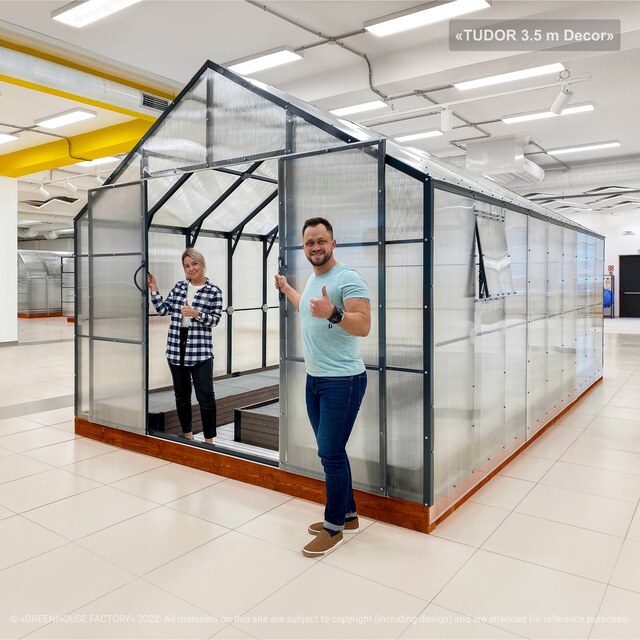

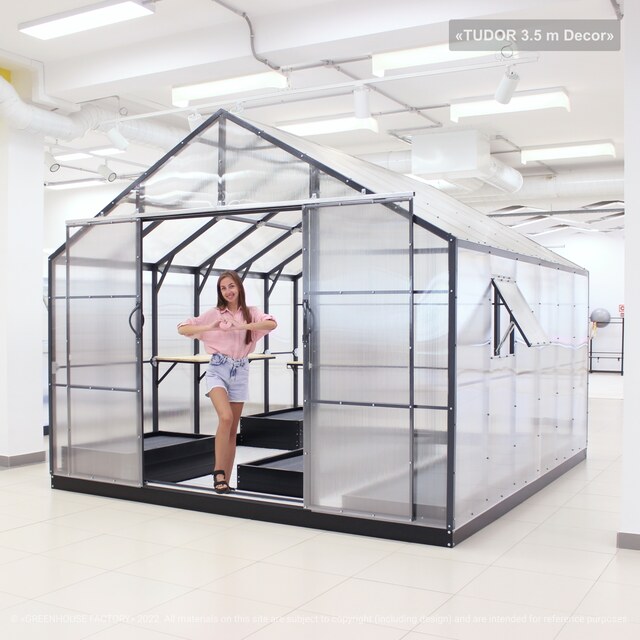

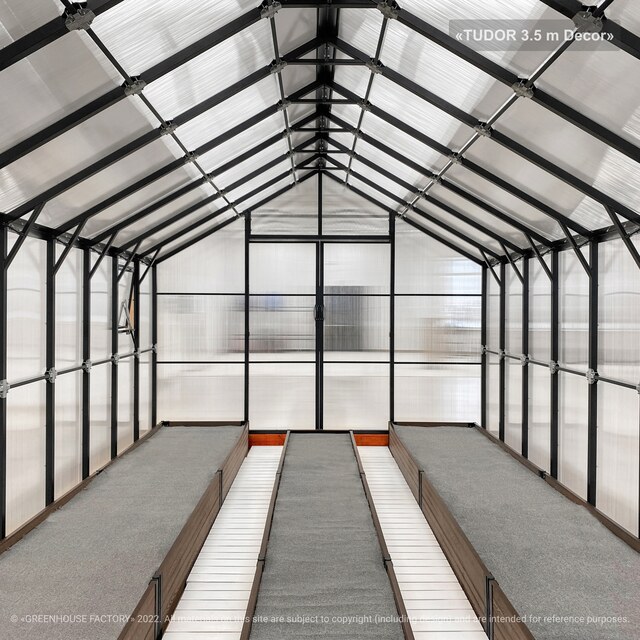

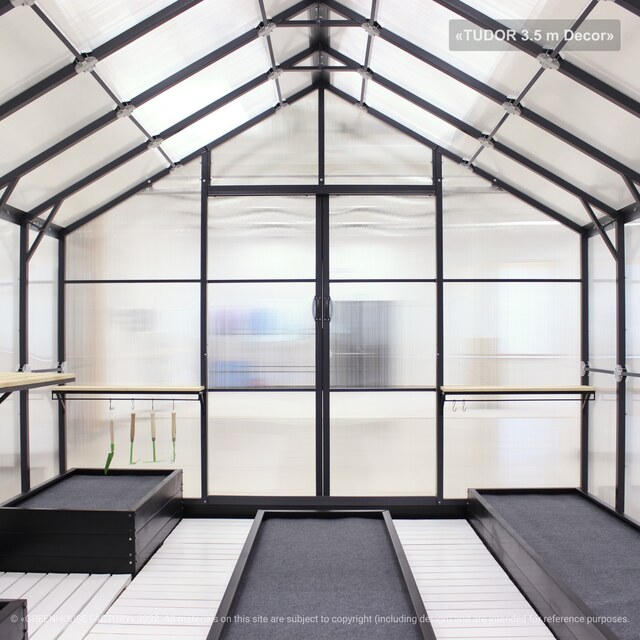

Greenhouse «TUDOR 3.5m»

3.5 meters wide. Length can be 4 m, 6 m, 8 m and more. The distance between arcs is 0.65 m. Frame is made of galvanized pipe 40x40 mm.
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m
TUDOR 3.5m

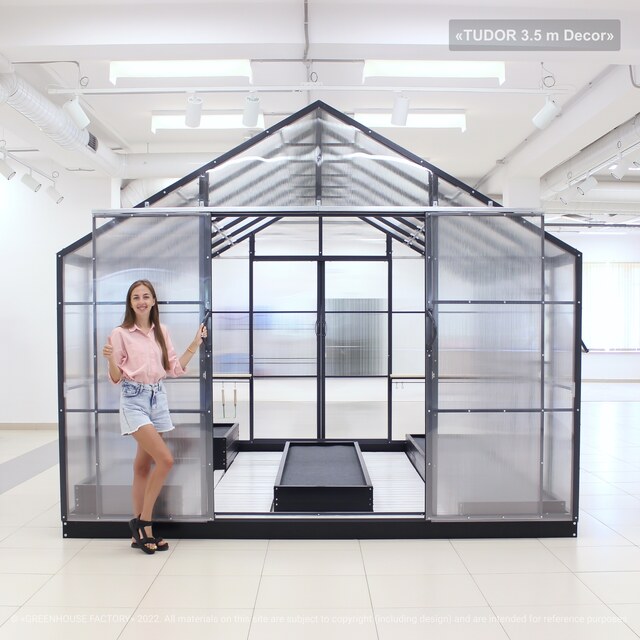

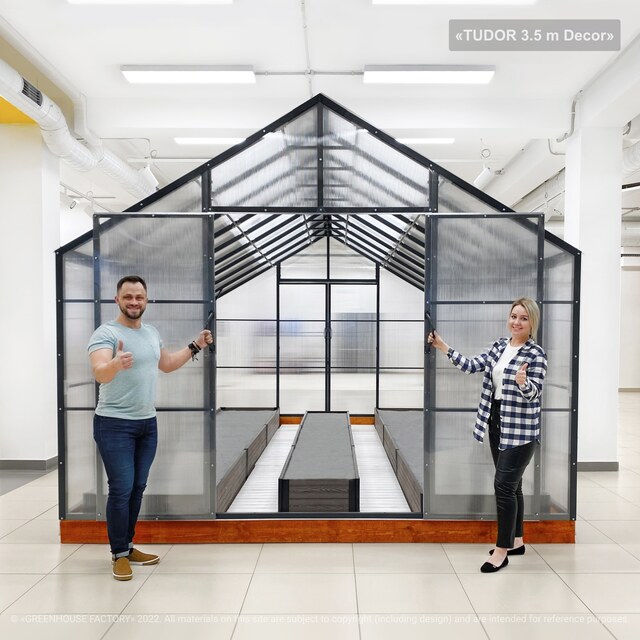

Reinforced ends and doors

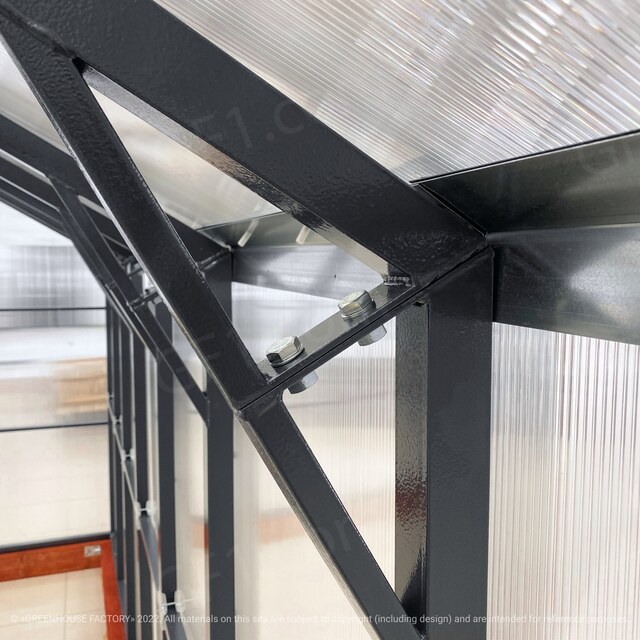

Frame made of galvanized pipe 40x40
11 longitudinal reinforcements
Decorative corners
Unique hinges on greenhouse doors
Convenient double-sided handles
Reinforced polycarbonate mount

Greenhouse «TUDOR 3.5m»

3.5 meters wide. Length can be 4 m, 6 m, 8 m and more. The distance between arcs is 0.65 m. Frame is made of galvanized pipe 40x40 mm.
Choose the width of the greenhouse:  Greenhouse width
[[ Object.keys(calc.price)[0] ]] m
Greenhouse height
[[calc.options[selected.width].height]] m
Arched step: [[(interval_name / 1000).toString().replace('.', ',')]] m
With polycarbonate
[[translateColumn(polycarbonate_name)]]
[[length_name]] m
-[[calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].discount]]% [[formatPrice(roundPriceToHundred((calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].number + 1) / (100 - calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].discount) * 100) - 1)]] [[formatPrice(calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].anotherprice)]] [[formatPrice(calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].number)]]

I want it longer
[[formatPrice(roundPriceToHundred((calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].number + 1)/(100 - calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].discount) * 100) - 1)]]
[[formatPrice(calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].anotherprice)]]
[[formatPrice(calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].number)]]  €

Size

The width of the greenhouse is 3.5 or 4 meters.
Length - 4.04 m, 6.04 m, 8.04 m and more meters, a multiple of 2 meters.
The height of the greenhouse "Tudor 3.5m" is 2.81 meters, the height of the straight wall is 1.8 meters.
The height of the greenhouse "Tudor 4m" is 3.1 meters, the height of the straight wall is 1.95 meters.
The height of the greenhouses is indicated without taking into account the foundation.

Frame

The frame of the greenhouse is made of a 40x40 pipe, galvanized outside and inside, and additionally covered with a decorative dark gray polymer coating.
The distance between the racks is 0.65 m.

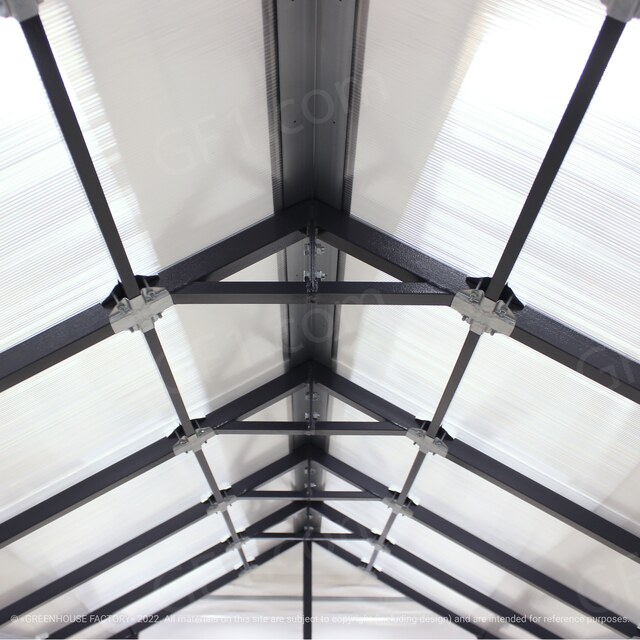

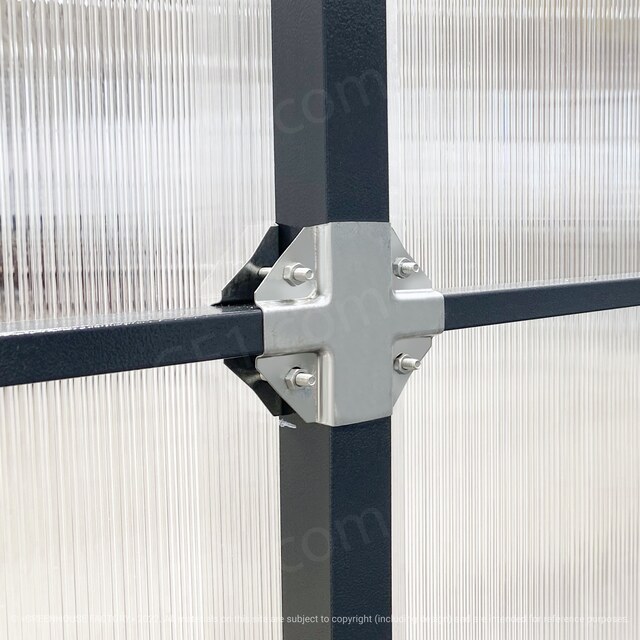

The frame is assembled using a crab system. With this method of assembling the frame, the longitudinal guides (lintels connecting the arcs) are in the same plane with the polycarbonate, which provides the polycarbonate with additional support.

Equipment

The greenhouse has two large collars on each side.
The greenhouse can be equipped with compartment doors.

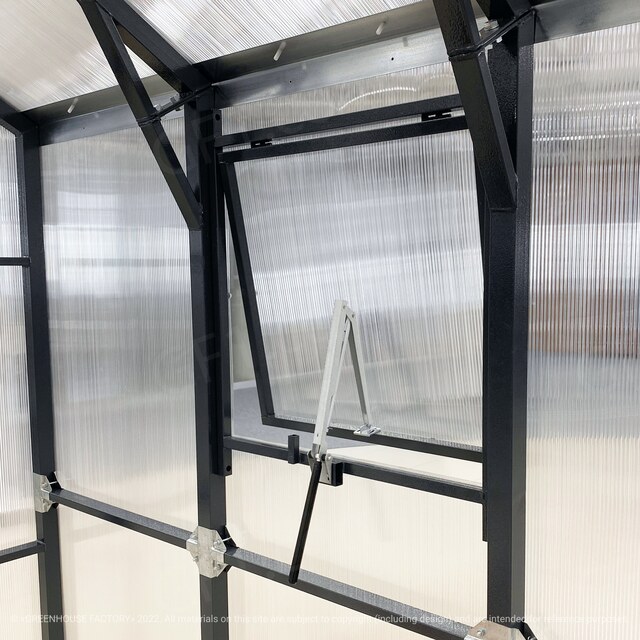

Additionally, you can purchase self-opening (depending on temperature) automatic vents.
It is possible to install double arc-farms.

Polycarbonate

As a cover for the greenhouse, we recommend polycarbonate of our own production «GREENHOUSE FACTORY» with a thickness of 4 mm with effective sheet protection from ultraviolet radiation (UV protection) both on the surface of the sheet and in its mass.
UV protection prolongs the life of polycarbonate and prevents its destruction (haze, brittleness).

Polycarbonate mount

Reinforced fastening of polycarbonate with roofing screws with a rubber press washer through a galvanized tape. This mount:
1) Prevents tearing and damage of polycarbonate under the influence of strong wind and snow cap;
2) Securely presses the polycarbonate along the entire length of the greenhouse arc with a galvanized tape. Your polycarbonate will not fly around the neighbors' garden;
3) Allows you to avoid accidental pulling and punching of polycarbonate with a self-tapping screw during installation.

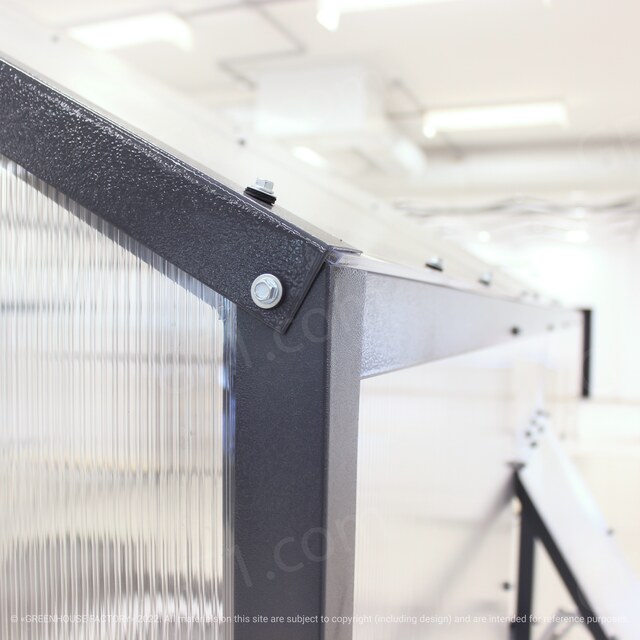

Fastening polycarbonate on vertical walls: roofing screws through special clamping decorative corners.
Such fastening securely holds the polycarbonate from wind gusts and prevents the formation of gaps (crevices) between the polycarbonate and the end of the greenhouse (a common problem with straight-walled greenhouses), and also gives the greenhouse a well-groomed appearance.

Peculiarities

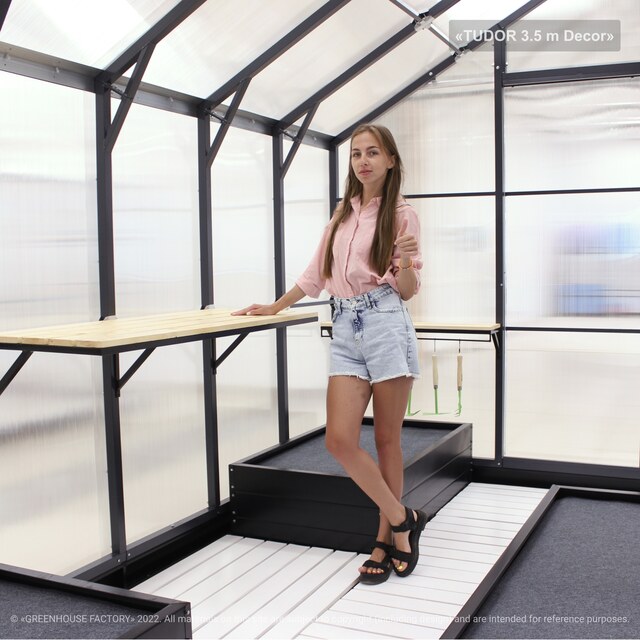

Greenhouse "Tudor" has a large internal volume due to the shape and height, so it is very convenient to use.
The spacing of the 0.65 m racks prevents the formation of "pops" and rattling of polycarbonate under the influence of wind.
The gable shape of the roof contributes to the descent of the snow cap, and the moisture formed inside the greenhouse on polycarbonate flows freely, does not drip onto the plants and does not burn their leaves.

Mounting

The minimum number of collapsible elements ensures ease of assembly, so most buyers install the greenhouse on their own.
Our company highly recommends installing the greenhouse on a steel foundation, or on a beam 150x100, 100x100.
Before assembling the greenhouse yourself, you can watch a video instruction for assembling similar greenhouses on our website at the bottom of the page.
A detailed printed version of the instruction is included with each greenhouse.


Exploitation

Regardless of the strength of the frame, in case of excessive precipitation, it will not be superfluous to clean the snow cap. For the winter period, it is necessary to close the doors and vents of the greenhouse.
In greenhouses made of polycarbonate, the use of sulfur checkers is prohibited. Their use can lead to premature destruction of polycarbonate, corrosion of fittings and the frame of the greenhouse.
Avoid contact with chemicals on the frame of the greenhouse.
It is recommended to lubricate the locks of the greenhouse during installation and during operation with engine oil to prevent jamming of the locks and, as a result, damage to the handles.
To clean the greenhouse from dirt and dust, we recommend using a touchless sink or a soft cloth, a sponge dipped in warm soapy water.
It is forbidden to apply paint on polycarbonate on your own and use detergents containing salts, alkalis, ethers, aldehydes, chlorine, methanol for cleaning.

Storage

The disassembled greenhouse must be stored in a dry room (with long-term storage of 10 days).
Polycarbonate sheets are best stored unfolded, preferably indoors, to prevent excessive heating from sunlight (in summer). With prolonged exposure to sunlight, the protective film and the polycarbonate itself may stick together, which will make it difficult to remove the film in the future and spoil the appearance of the product.
A polycarbonate sheet can be stored rolled up for a long time at temperatures from minus 40 degrees to plus 60 degrees. With this storage, the roll is placed vertically (standing up) to avoid damage and dents on the polycarbonate from stones and bumps.
