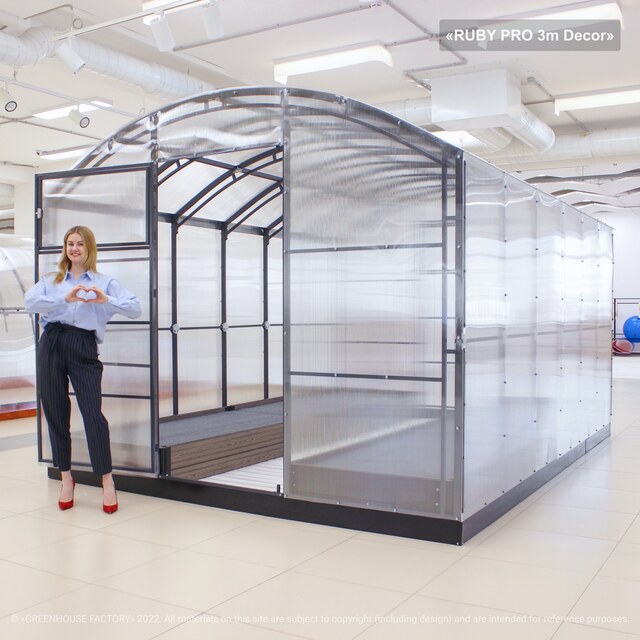

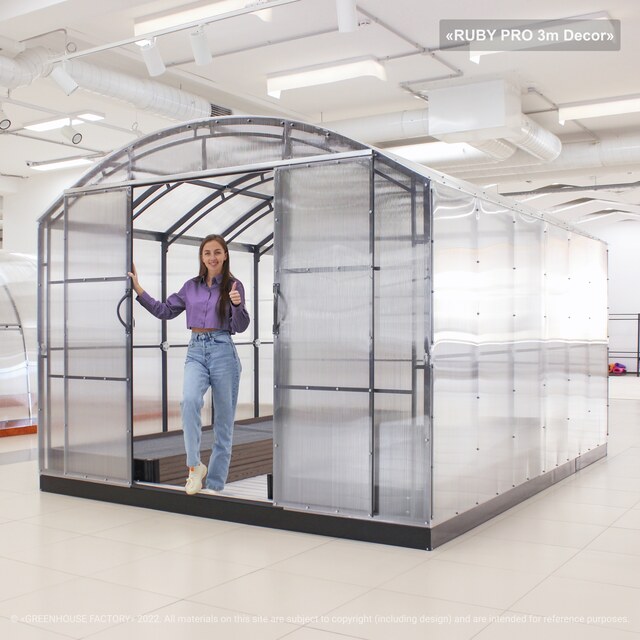

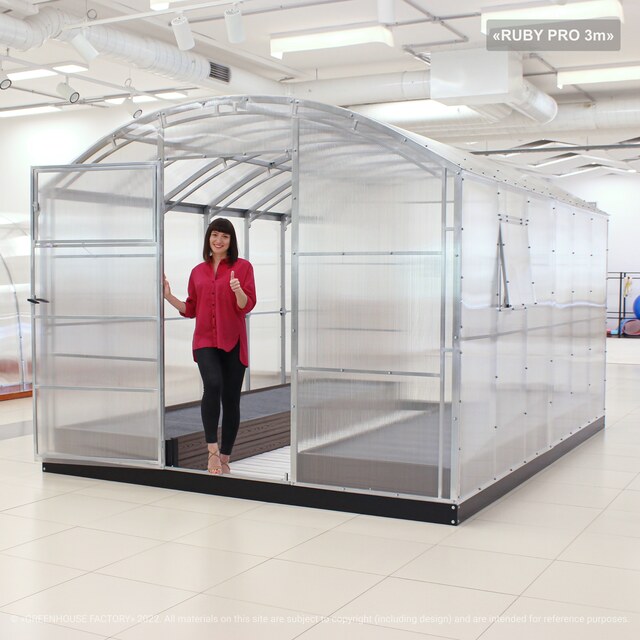

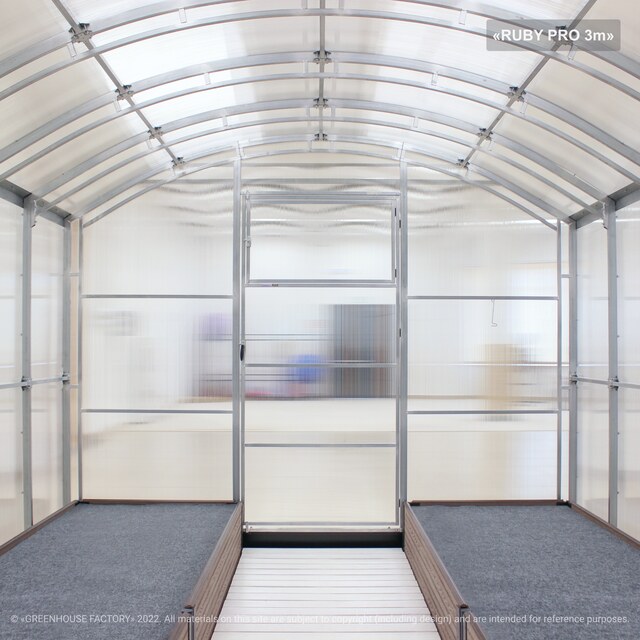

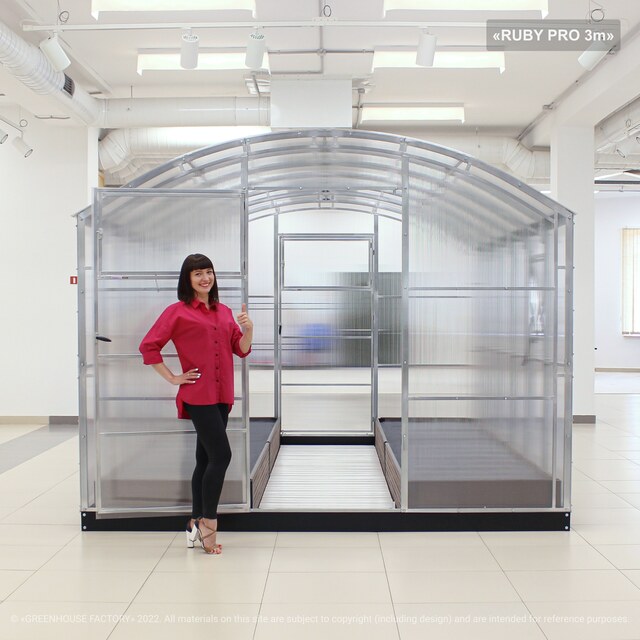

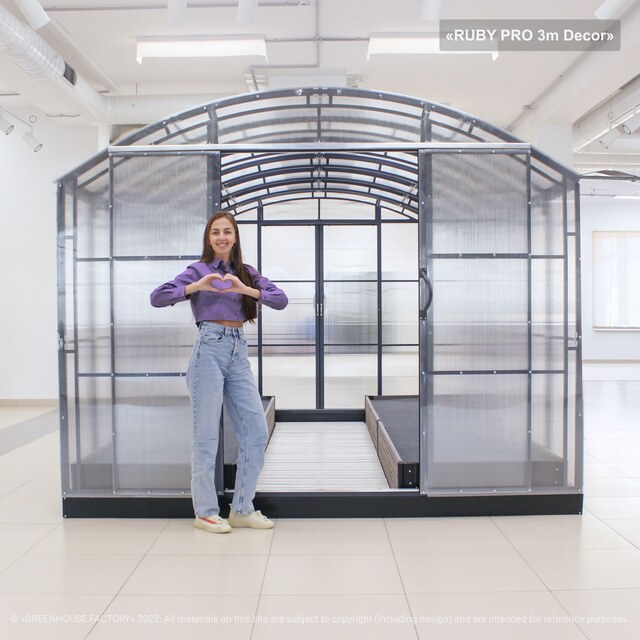

Greenhouse «RUBY PRO»

3 meters wide. Length can be 4 m, 6 m, 8 m and more. The distance between race is 0.65 m. Double arches. Frame is made of galvanized pipe 40x20 mm.
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
RUBY PRO
Reinforced greenhouse ends and doors
Frame - double arches-trusses made of galvanized pipe 40x20

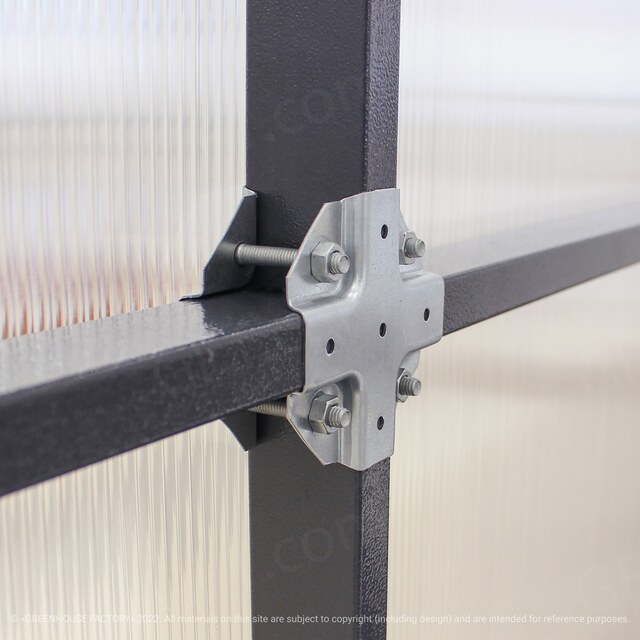

Reliable fixing by the «crab system»
Pressure strips
Unique hinges on greenhouse doors
Convenient double-sided handles
Reinforced polycarbonate mount

Greenhouse «RUBY PRO»

3 meters wide. Length can be 4 m, 6 m, 8 m and more. The distance between race is 0.65 m. Double arches. Frame is made of galvanized pipe 40x20 mm.
Choose the width of the greenhouse:  Greenhouse width
[[ Object.keys(calc.price)[0] ]] m
Greenhouse height
[[calc.options[selected.width].height]] m
Arched step: [[(interval_name / 1000).toString().replace('.', ',')]] m
With polycarbonate
[[translateColumn(polycarbonate_name)]]
[[length_name]] m
-[[calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].discount]]% [[formatPrice(roundPriceToHundred((calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].number + 1) / (100 - calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].discount) * 100) - 1)]] [[formatPrice(calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].anotherprice)]] [[formatPrice(calc.price[selected.width][length_name].interval[interval_name][polycarbonate_name].number)]]

I want it longer
[[formatPrice(roundPriceToHundred((calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].number + 1)/(100 - calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].discount) * 100) - 1)]]
[[formatPrice(calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].anotherprice)]]
[[formatPrice(calc.price[selected.width][selected.length].interval[selected.interval][selected.polycarbonate].number)]]  €

Size

The width of the greenhouse is 2.98 meters.
Length - 4.02 m, 6.02 m, 8.02 m and more, a multiple of 2 meters.
These dimensions correspond to the dimensions of the foundation along the outer edge.
The height of the greenhouse is 2.3 meters.
The height of the side wall is 1.78 meters.
The height is indicated without the foundation.

Frame

The greenhouse has two doors and two vents at opposite ends.
The frame is made of double trusses 40x20, galvanized outside and inside.
The distance between the arcs is 1 m or 0.65 m.
A greenhouse with a distance between the arcs of 0.65 m has a double margin of safety.

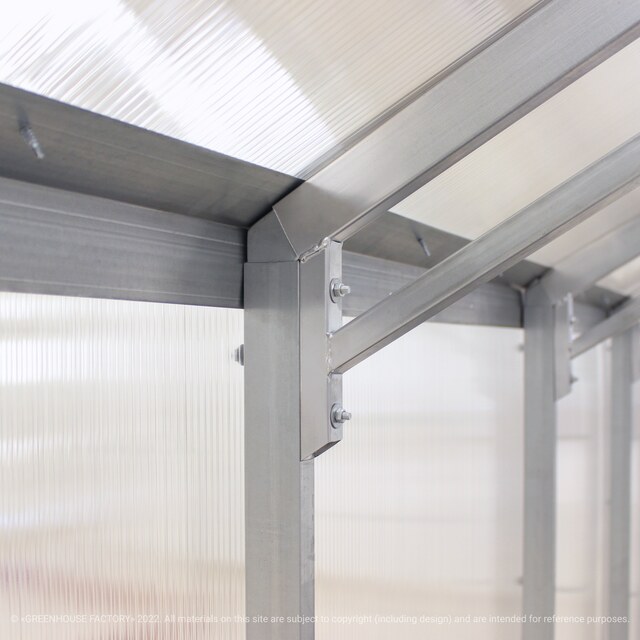

The door pillars and the base of the greenhouse are made of a 40x20 galvanized rectangular pipe - the doors do not hang out, everything is secure!

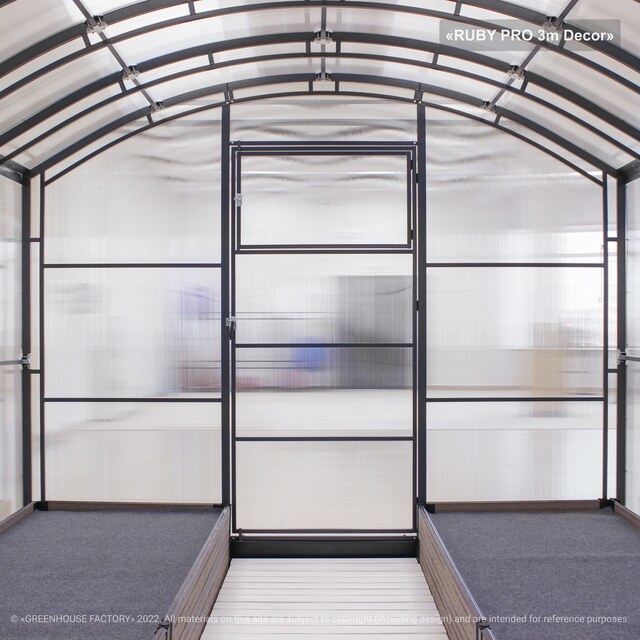

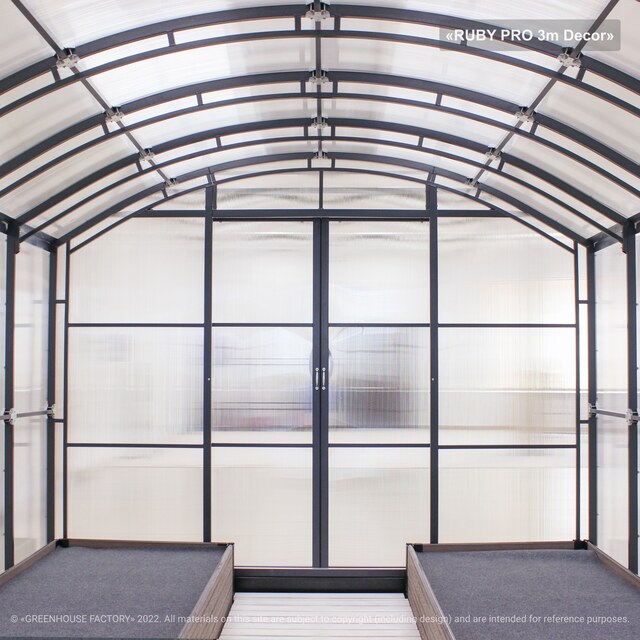

The ends of the greenhouse are also made of a double arc-truss, which gives the greenhouse a more solid and beautiful look.
New! Reinforced ends and doors:
1) Reinforcements protect the greenhouse from windage, prevent the formation of "pops" and rattling of polycarbonate under the influence of wind;
2) Give the ends additional rigidity, protect the ends and doors of the greenhouse from snowdrifts.

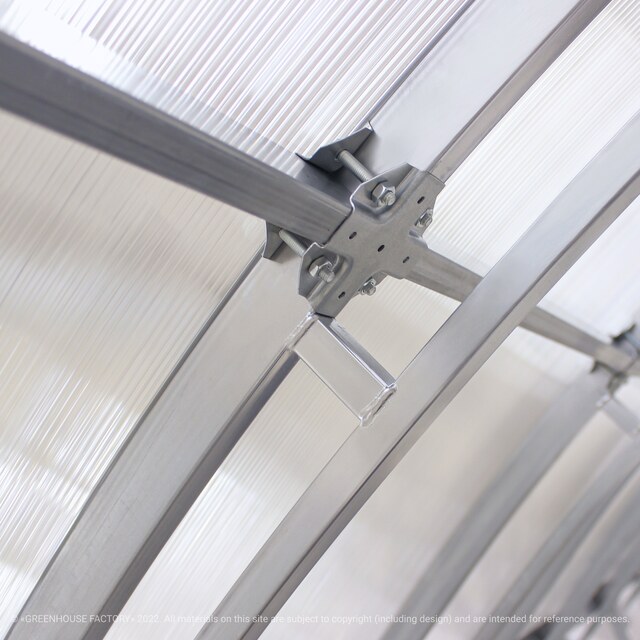

The frame is assembled using a crab system. With this method of assembling the frame, the longitudinal guides (lintels connecting the arcs) are in the same plane with the polycarbonate, which provides the polycarbonate with additional support.
The frame is fastened by 9 longitudinal guides, which prevent the polycarbonate from falling under the weight of the snow cap and give the frame additional rigidity.

Equipment

The greenhouse has two windows and two doors at opposite ends.

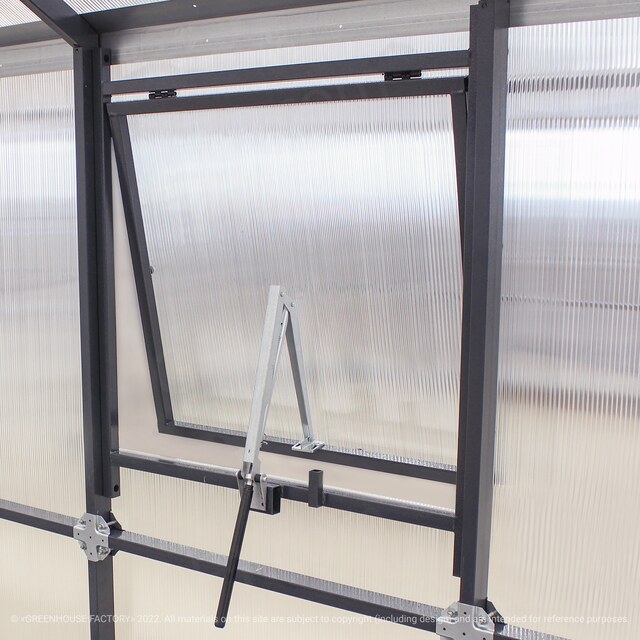

Additionally, you can purchase self-opening (depending on temperature) automatic vents.

Polycarbonate

As a cover for the greenhouse, we recommend polycarbonate of our own production «GREENHOUSE FACTORY» with a thickness of 4 mm with effective sheet protection from ultraviolet radiation (UV protection) both on the surface of the sheet and in its mass.
UV protection prolongs the life of polycarbonate and prevents its destruction (haze, brittleness).

Polycarbonate mount

Reinforced fastening of polycarbonate with roofing screws with a rubber press washer through a galvanized tape. This mount:
1) Prevents tearing and damage of polycarbonate under the influence of strong wind and snow cap;
2) Securely presses the polycarbonate along the entire length of the greenhouse arc with a galvanized tape. Your polycarbonate will not fly around the neighbors' garden;
3) Allows you to avoid accidental pulling and punching of polycarbonate with a self-tapping screw during installation.
Fastening polycarbonate on vertical walls: roofing screws through special rigid clamping strips.
The mount securely holds the polycarbonate from gusts of wind and prevents the formation of gaps (crevices) between the polycarbonate and the end of the greenhouse (a common problem with straight-walled greenhouses).

Peculiarities

Greenhouse "Rub Pro" has a large internal volume due to the shape and height of 2.3 m and is therefore easy to use.
The presence of double arcs on the greenhouse makes it easy to tie plants to them and attach additional equipment.
For a greenhouse with an arc pitch of 1 m, periodic maintenance is required in the form of cleaning from accumulated snow.
The pitch of the racks of 0.65 m, unlike 1 m, prevents the formation of "pops" and rattling of polycarbonate under the influence of wind.
The greenhouse with an increased number of arcs with a step of 0.65 m can withstand significant snow and wind loads.
Constant maintenance of the greenhouse in winter is not required.

Mounting

The minimum number of collapsible elements ensures ease of assembly, so 95% of buyers install the greenhouse on their own.
Our company highly recommends installing the greenhouse on a steel foundation, or on a beam 150x100, 100x100.
The use of a smaller section of timber as a foundation, for example, 100x50 boards, is not recommended even for the sake of extreme economy.
Before self-assembly of the greenhouse, you can watch the video instruction on our website at the bottom of the page.
A detailed printed version of the instructions is included with each greenhouse.
Estimated installation time of the greenhouse - 4-5 hours.


Exploitation

Regardless of the strength of the frame, in case of excessive precipitation, it will not be superfluous to clean the snow cap. For the winter period, it is necessary to close the doors and vents of the greenhouse.
In greenhouses made of polycarbonate, the use of sulfur checkers is prohibited. Their use can lead to premature destruction of polycarbonate, corrosion of fittings and the frame of the greenhouse.
Avoid contact with chemicals on the frame of the greenhouse.
It is recommended to lubricate the locks of the greenhouse during installation and during operation with engine oil to prevent jamming of the locks and, as a result, damage to the handles.
To clean the greenhouse from dirt and dust, we recommend using a touchless sink or a soft cloth, a sponge dipped in warm soapy water.
It is forbidden to apply paint on polycarbonate on your own and use detergents containing salts, alkalis, ethers, aldehydes, chlorine, methanol for cleaning.

Storage

The disassembled greenhouse must be stored in a dry room (with long-term storage of 10 days).
Polycarbonate sheets are best stored unfolded, preferably indoors, to prevent excessive heating from sunlight (in summer). With prolonged exposure to sunlight, the protective film and the polycarbonate itself may stick together, which will make it difficult to remove the film in the future and spoil the appearance of the product.
A polycarbonate sheet can be stored rolled up for a long time at temperatures from minus 40 degrees to plus 60 degrees. With this storage, the roll is placed vertically (standing up) to avoid damage and dents on the polycarbonate from stones and bumps.
